Lithium Cobalt Monoxide XC200
【Feature】:Large size single crystal particles, high crystallinity; Specific surface area is small, heat stable, safe performance, can be resistant to 3C/10V, 150 ℃ 30min furnace heat test; materials processing performance, up to 4.3-4.4 extreme compaction g / cc, bulk used up 4.0-4.2g/cc.
【Application】:For high standard capacity and security requirements of square, and cylindrical polymer battery.
【Main physicochemical indicator】:
| Item | Standard | |
| Chemical ingredient | Fe(%) | ≤0.02 |
| Na(%) | ≤0.02 | |
| Ca(%) | ≤0.02 | |
| Metal impurities (ppb) | ≤50 | |
| Particle size | D10(μm) | ≥4 |
| D50(μm) | 10.0-14.0 | |
| D90(μm) | ≤30 | |
| Dmax(μm) | ≤60 | |
| Moisture（%） | ≤0.04 | |
| PH value | 9.0-11.0 | |
| Tap density（g/cm3） | ≥2.6 | |
| Specific surface area (m2/g) | 0.15-0.35 | |

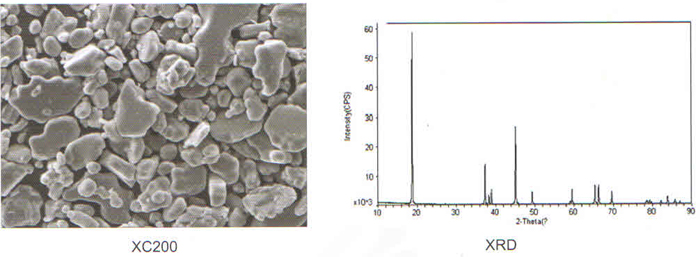

| XRD | Single phase | |
| SEM | See the picture, no big differences in morphology | |
